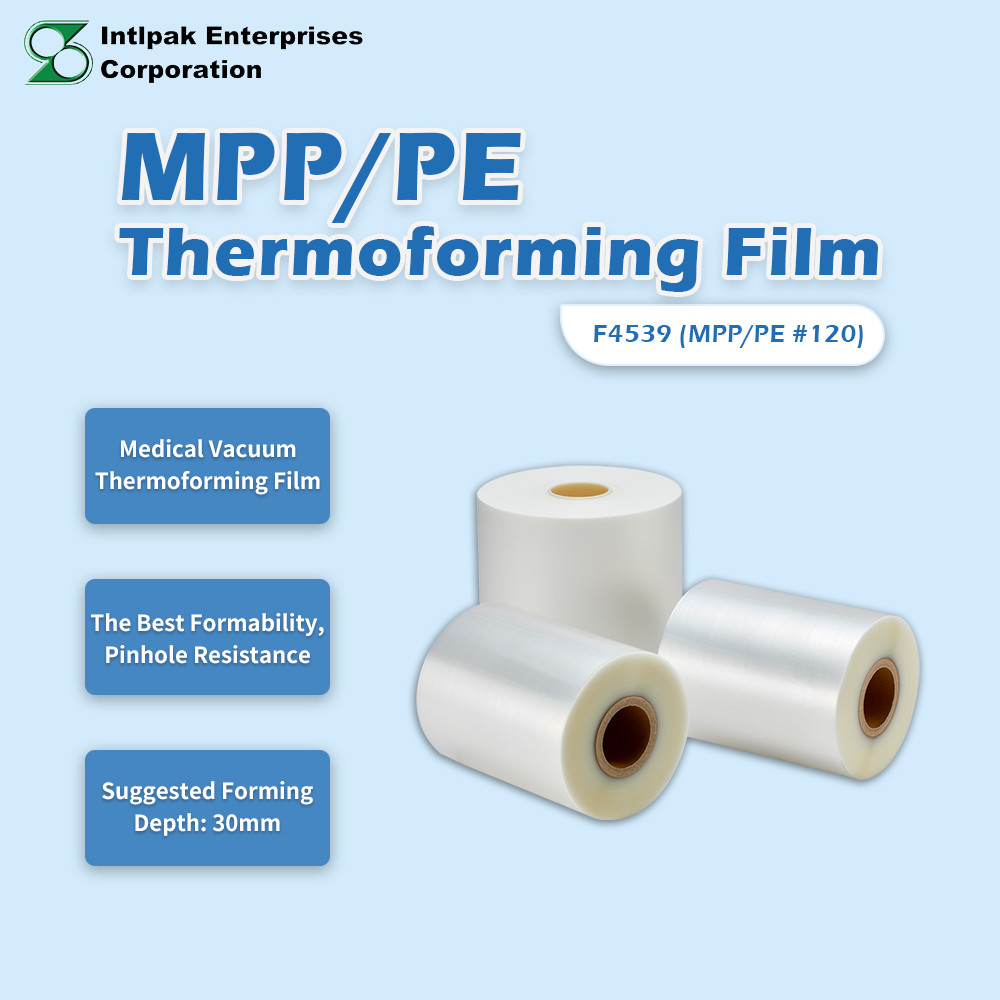

MPP/PE Thermoforming Film — Medical Care Package F4539 (120μm)
F4539 is the 120μm deeper-draw grade in Intlpak's MPP/PE thermoforming film series — a vacuum thermoforming base film for medical device packaging at forming depths up to 30mm, with suitability for E.O. (ethylene oxide) sterilization.
A Deeper-Draw Base Film for Bulkier Medical Devices
F4539 extends Intlpak's MPP/PE series to 120μm for deeper draws — up to 30mm — where devices need more cavity volume than the 80μm F4538 provides. It runs the same computer-controlled co-extrusion with automatic foreign-object detection and thickness control in clean-room conditions, and the heavier gauge keeps the formability, pinhole resistance, transparency, and gloss inspectors rely on.
Where F4539 Is Used
- 1
Deeper-Draw Thermoforming Film
Vacuum thermoforming base film for disposable medical supplies and medical equipment. F4539 is the 120μm deeper-draw grade in the MPP/PE series, extending the forming window to 30mm while staying an all-polyolefin structure.
- 2

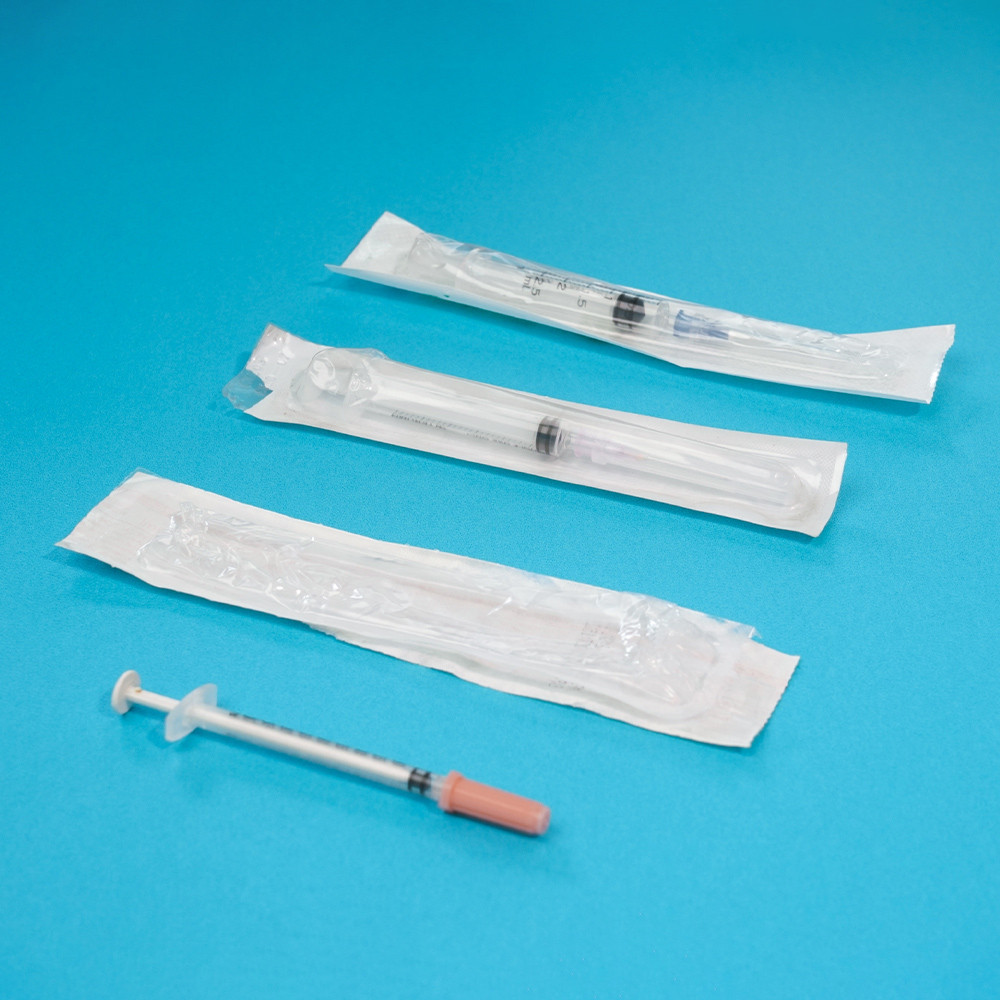

Syringe and Gauze Packaging
Injection syringes, gauze, cotton pads, and sputum suction tubes. Haze rises only to 5.3% at 120μm, so the deeper pack keeps most of the clarity of the thinner grade rather than turning milky.
- 3
Bulkier Devices, 30mm Cavity
Bulkier medical devices requiring a deeper 30mm forming cavity. Elongation 800/770% carries the web through the extra draw, and untreated C.O.F. of 0.12/0.10 keeps the roll feeding smoothly into the forming station.
- 4
E.O. Sterilization Compatibility
Packaging lines requiring E.O. (ethylene oxide) sterilization compatibility. Intlpak manufactures both MPP/PE grades under ISO 9001, ISO 22000, HACCP and GMP clean room conditions; the finished sterile barrier is validated by the device maker.
Full Specifications — MPP/PE Thermoforming Film Series
F4539 is the 120μm deeper-draw grade in Intlpak's MPP/PE medical thermoforming film family — a 120 micron medical forming film for a 10–30mm forming depth, with 5.3% haze and 800% elongation (MD), suitable for E.O. sterilization. The table below shows F4539 alongside the shallower-draw 80μm F4538 grade in the same series.
| Property | Standard | Unit | F4538 (80μm) | F4539 (120μm) |
|---|---|---|---|---|
| Thickness | — | μm | 80 | 120 |
| Yield Point (MD) | ASTM D882 | kg/cm² | 180 | 180 |
| Yield Point (TD) | ASTM D882 | kg/cm² | 180 | 170 |
| Break Point (MD) | ASTM D882 | kg/cm² | 410 | 350 |
| Break Point (TD) | ASTM D882 | kg/cm² | 360 | 360 |
| Elongation (MD) | ASTM D882 | % | 770 | 800 |
| Elongation (TD) | ASTM D882 | % | 820 | 770 |
| Tensile Modulus 2% (MD) | ASTM D882 | kg/cm² | 3600 | 3500 |
| Tensile Modulus 2% (TD) | ASTM D882 | kg/cm² | 3600 | 3300 |
| Static C.O.F. (treated) | ASTM D1894 | kg/200g | 0.28 | 0.20 |
| Static C.O.F. (untreated) | ASTM D1894 | kg/200g | 0.08 | 0.12 |
| Kinetic C.O.F. (treated) | ASTM D1894 | kg/200g | 0.20 | 0.20 |
| Kinetic C.O.F. (untreated) | ASTM D1894 | kg/200g | 0.07 | 0.10 |
| Haze | ASTM D1003 | % | 3.5 | 5.3 |
| Suggested Forming Depth | — | mm | 10–15 | 10–30 |
| Formability / Pinhole Resistance | — | — | Best-in-class | |
| Optical Properties | — | — | High transparency, high gloss | |
| Sterilization Compatibility | — | — | Suitable for E.O. (ethylene oxide) sterilization | |
| Typical Application | — | — | Injection syringes, gauze, cotton pads, suction tubes, and other medical equipment | |
| Width | — | — | Customized | |
| Length | — | — | Customized | |
Reviewed by: Intlpak R&D Team.
Why F4539 Performs
Storage Notice
Avoid exposure to direct light, wind, and rain — store under appropriate conditions. Prevent products from slipping from high places, being polluted, or being impacted during handling.
Quality & Certification
Manufactured under ISO 9001 quality management and GMP clean-room production standards suited to medical-grade packaging, with ISO 22000 & HACCP certification. All products undergo annual safety checks.
Questions About F4539
F4539 forms to 30 mm, double F4538 — what does that cost?
Gauge and money. F4539 is 120 μm against F4538 's 80 μm, and those 40 μm take forming capability from 10–15 mm up to 30 mm. For flat devices, specifying F4539 adds material cost and thermoforming energy without adding any sterile-barrier benefit.
Can F4539 be gamma sterilized?
No — this grade is specified for ethylene oxide (E.O.). For gamma compatibility, move to the nylon medical family: F2615-M (120 μm, 10–30 mm) matches F4539 closely on both gauge and forming depth while accepting E.O. and gamma, making it the most direct substitution.
At 30 mm of draw, does corner thinning threaten the sterile barrier?
That is precisely what to validate. 30 mm is the recommended ceiling, within which wall-thickness distribution stays acceptable — but the real result depends on tooling radii, forming temperature and heating time. Measure actual corner wall thickness during process validation and fold the data into your sterile barrier qualification.
What top web does F4539 pair with?
A breathable one — medical-grade dialysis paper or Tyvek, so E.O. can enter and leave while the microbial barrier holds. F4539 is the bottom web, thermoformed into the device cavity; sealed to the top web it completes the sterile barrier system, with seal parameters qualified alongside sterilization and ageing studies.
Which devices suit F4539?
Anything needing a deeper cavity — instrument sets, orthopaedic implant packaging, bulkier single-use devices. It is positioned as the deep-draw forming base film for E.O. processes; for greater depth or gamma sterilization, evaluate the nylon grade F2606-M (150 μm, 40–50 mm).
What packaging suits longer devices like suction tubes?
They need draw depth more than clarity. F4539 is the 120 μm MPP/PE grade rated for a 10–30 mm forming depth — double the 80 μm grade's range — with 5.3% haze and 800% elongation in the machine direction, so the film stretches into a deeper cavity rather than thinning to a weak point. MPP/PE grades are stated for E.O. sterilization only.
Can a medical packaging film be supplied in our own width with production documentation?
Yes. Width and length are made to order across the medical range, F4539 included, with samples available before a production order and a minimum of approximately 500–1,000 kg per grade. Intlpak manufactures in Taiwan under ISO 9001, ISO 22000 and HACCP certification with GMP clean-room production, and supplies the technical data sheet for each grade on request.
